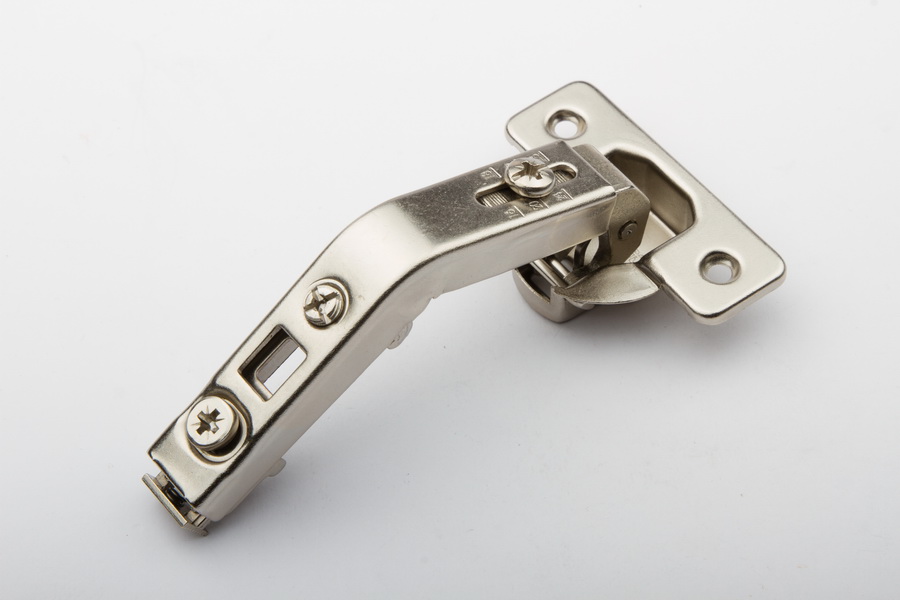

HW Series 135° Blind Corner Regular Concealed Hinge (Cam Adjustable)
HW Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 135°
Function Auto Close
Plate type Clip On
Cup depth 11.5 mm
Cup diameter 35 mm
Drilling distance 3 mm - 7 mm
Door thickness 14 mm - 22 mm
Material Cold Rolled Steel
Height adj range Plate Adjustment
Overlay adj range 5 mm
Depth adj range 3.8 mm
Finish Copper Nickel
Packaging 100 Units per Carton
Notable features
- Specially designed for blind corners applications at a 135° angle (Lazy Suzan).
