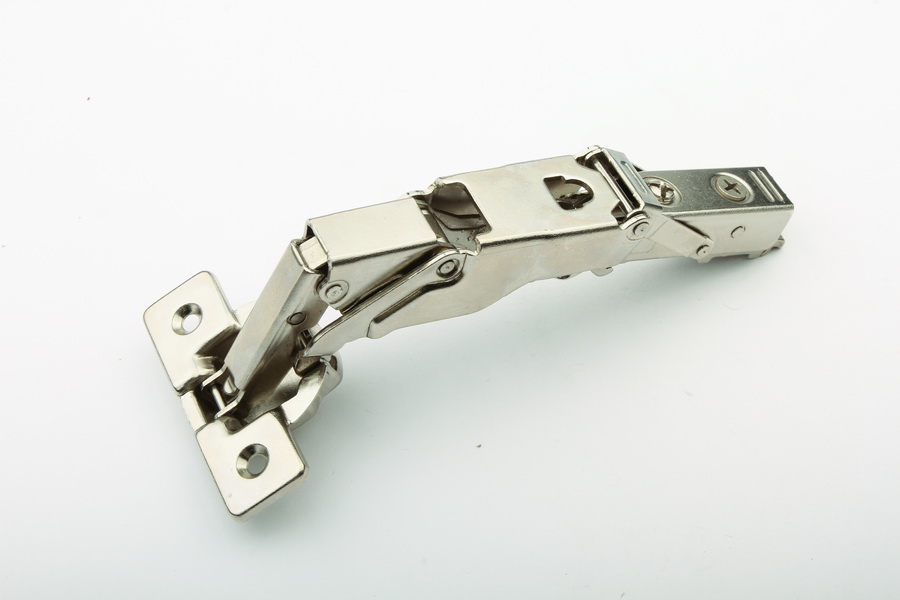

CV Series 155° Zero Protrusion Soft Closing Concealed Hinge
CV Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 155°
Function Soft Close
Plate type Clip On
Cup depth 11.5 mm
Cup diameter 35 mm
Drilling distance 3 mm - 7 mm
Door thickness 14 mm - 26 mm
Material Cold Rolled Steel
Height adj range Plate Adjustment
Overlay adj range 6 mm
Depth adj range 6 mm
Finish Copper Nickel
Packaging 100 Units per Carton
Notable features
- Wide opening angle to take optimal advantage of available storage space. - Zero protrusion: When opened at 90°, the door does not protrude to block drawers or baskets from opening. - Heavy duty product.
