Concealed Hinges

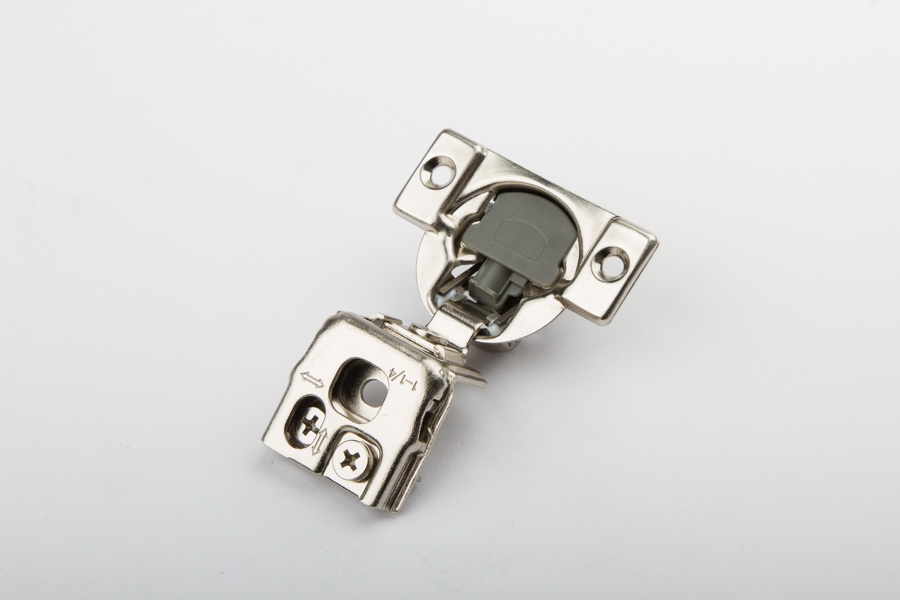

HD Series 105° 3D Soft Closing Concealed Hinge for Face Frame Cabinets 1-1/4"
HD Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 105°
Function Soft Close
Plate type Fixed Plate
Cup depth 10.9 mm
Cup diameter 35 mm
Drilling distance 3 mm
Door thickness 14 mm - 26 mm
Material Cold Rolled Steel
Height adj range 3 mm
Overlay adj range 3.8 mm
Depth adj range 3 mm
Finish Copper Nickel
Packaging 200 Units per Carton
Notable features
- In-cup soft closing mechanism for sleek and compact design. - Convenient 3D adjustment on hinge arm. - Heavy duty product achieving 100,000 test cycles.
