Ball Bearing Drawer Slides

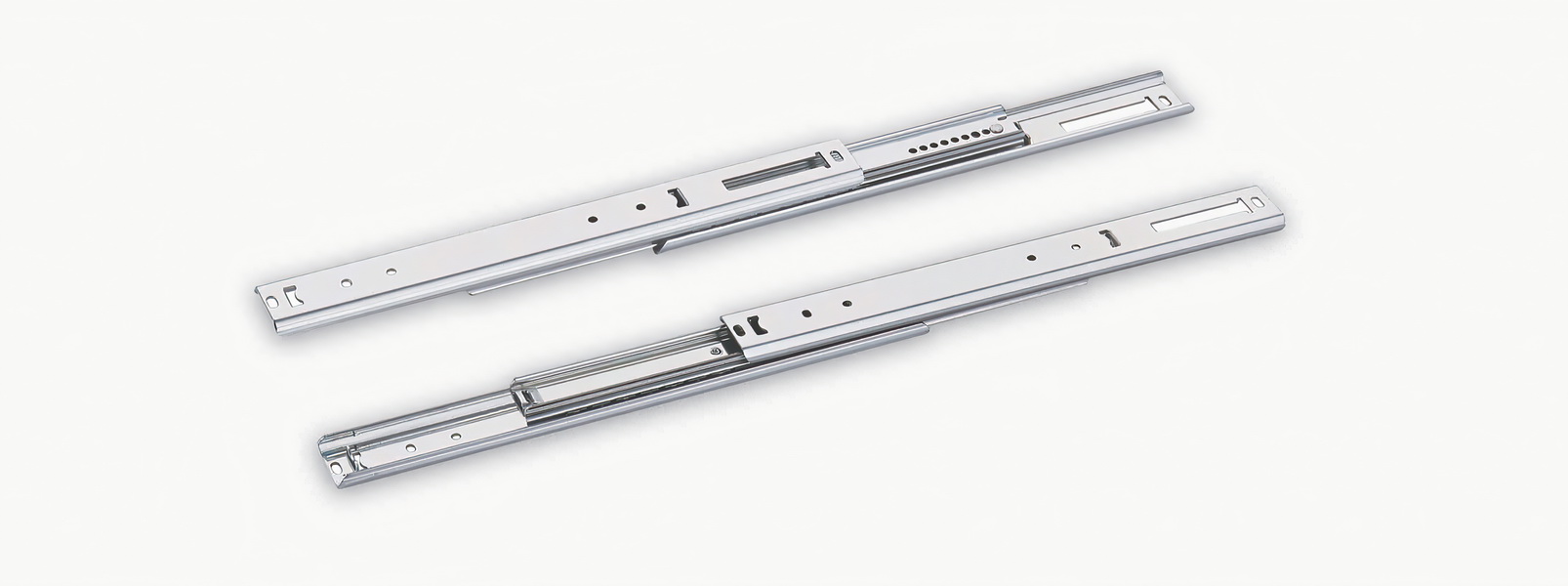

Two-way Travel Double Deck Ball Bearing Drawer Slide (35 mm Profile)
TD Series
Function Two-way Travel
Extension NONE
Available sizes 300 mm - 400 mm
Load capacity Up to 25 kg
Slide width 35 mm
Assembly height 19.6 mm ± 0.2
Thickness 1.2 x 1.2 x 1.2 mm
Release Non-Separable: Runner and ball cage form a single unit.
Finish Zinc Plated
Packaging 15 Sets per Carton
