Ball Bearing Drawer Slides

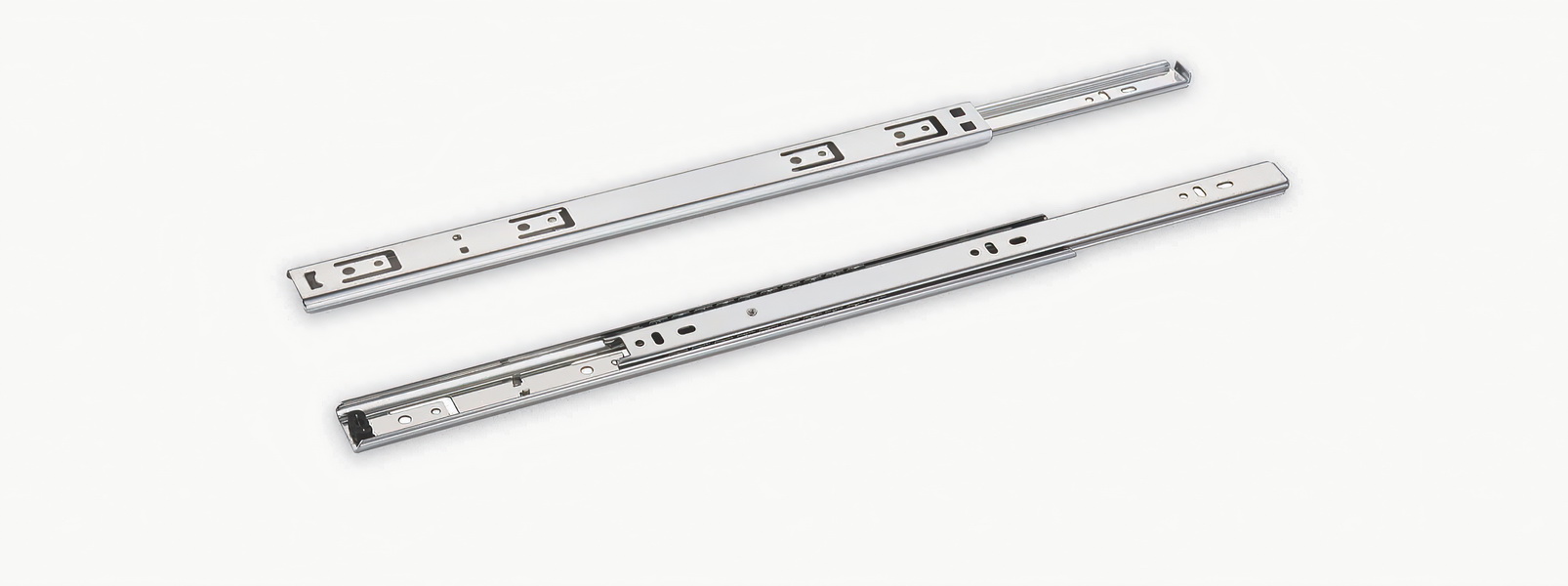

Partial Extension Ball Bearing Drawer Slide (35 mm Profile)
TP Series
Function Regular
Extension Partial Extension
Available sizes 250 mm - 600 mm
Load capacity Up to 25 kg
Slide width 35 mm
Assembly height 9.8 mm ± 0.2
Thickness 1.4 x 1.4 mm
Release Separable: Equipped with a release lever allowing for easy removal and return of drawer.
Finish Galvanized or Black
Packaging 15 Sets per Carton
