Application

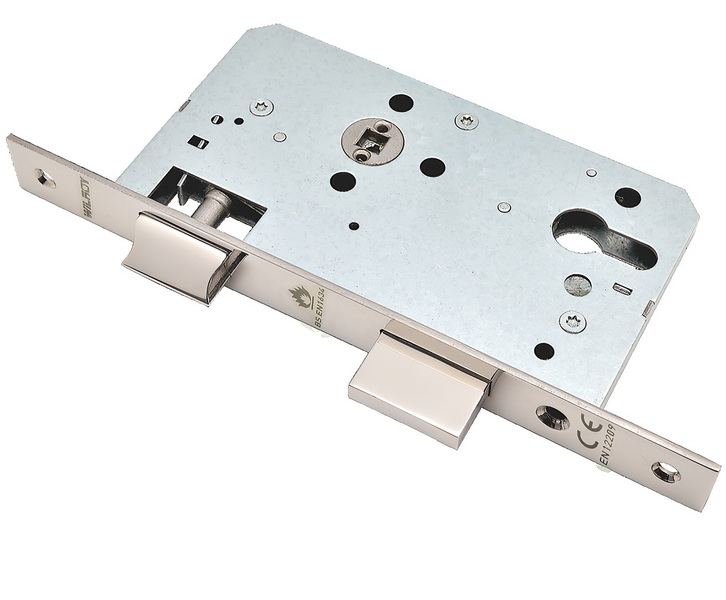

- European DIN style casing designed for use with Euro profile cylinders.
- Bolt-through fixing holes for security handles and roses.
- SECC galvanized steel lockcase assembled with stainless steel 304 Torx screws.
- Heavily sprung latch follower made from stainless steel 304 allowing the use of heavy unsprung door furniture.
- Latch follower equipped with spindle grip feature that reduces door rattle.
- Single throw deadbolt made from stainless steel 304 extending 20.5 mm when key is turned once.
- Easily reversible latch made from stainless steel 304 allows quick on-site handing.
- Forend made from 3 mm thick stainless steel 304, available in 20/22/24 mm widths with straight or rounded corners (specify size and type).
- Cylinder to latch functionality.
- Supplied with clear plastic splinter guard for improved esthetics (white or black available upon request).
- Supplied with strike plate made from stainless steel 304 (specify type).
- Supplied with grade 304 stainless steel fixing screws for timber doors (metal door screws available upon request).
Operation
From the inside:- Latch and deadbolt are withdrawn simultaneously by using the lever handle/knob.
- If unlocked, only the latch is retracted.
- Latch retracted on a second turn of the cylinder.
- Deadbolt operated by the cylinder key/thumbturn.
From the outside:
- Lever handle/knob only retracts the latch bolt.
- Deadbolt operated by cylinder key/thumbturn.
- Latch retracted on a second turn of the cylinder.
CE classification
3 X 9 1 0 G 3 B A 2 0
Specification
Center distance
72 mm
Backset size
60 mm
Follower
8 x 8 mm
Follower material
Stainless Steel 304
Deadbolt
20.5 mm single throw
Deadbolt material
Stainless Steel 304
Latch type
Reversible Latch
Latch material
Stainless Steel 304
Lockcase thickness
15 mm
Lockcase material
SECC Galvanized Steel
Forend length
235 mm
Forend width
20/22/24 mm with straight or round corners
Forend thickness
3 mm
Forend material
Stainless steel 304
Strike plate thickness
1.5 mm
Strike plate material
Stainless Steel 304
Packaging
20 Units per Carton
Certification
- 10 year warranty: The performance of this product and all its variants is covered by Wilroy's hassle-free warranty.- CE marked and fully tested to EN 12209:2003.
- CE marked and fully tested to EN 1634-1:2014 for suitability of use on fire doors.
- Fully compliant with DIN 18251.
- Fully compliant with EN 179.
