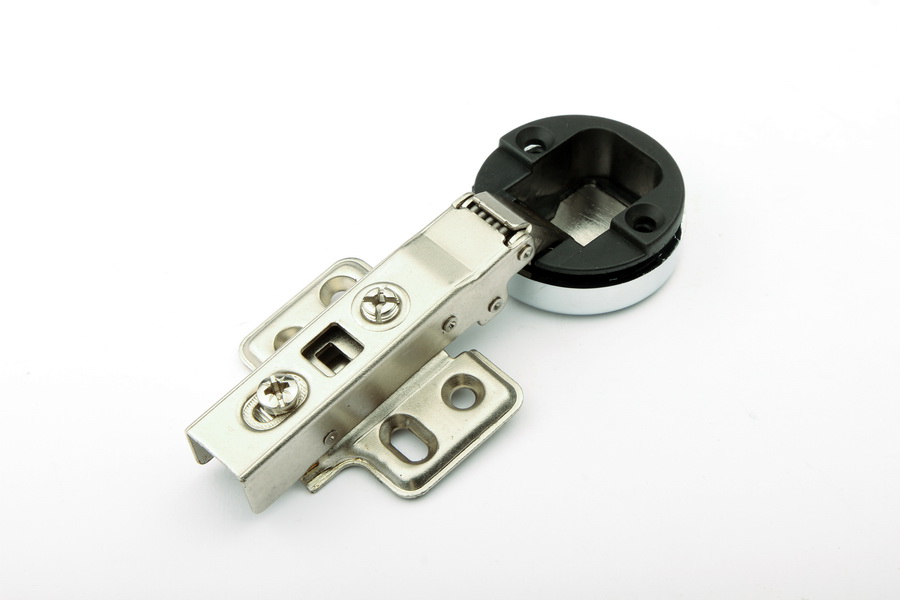

RR Series 105° 1Way+ Soft Closing Concealed Hinge for Glass Doors with Fixed Plate
GC Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 105°
Function Soft Close
Plate type Fixed Plate
Cup depth 12.5 mm
Cup diameter 35 mm
Drilling distance 3 mm - 6 mm
Door thickness 4 mm - 6 mm
Material Cold Rolled Steel
Height adj range 4 mm
Overlay adj range 6 mm
Depth adj range 5 mm
Finish Copper Nickel
Packaging 200 Units per Carton
Notable features
- Heavy duty product. - 1Way+ technology extending the service life of the hinge.
