Concealed Hinges

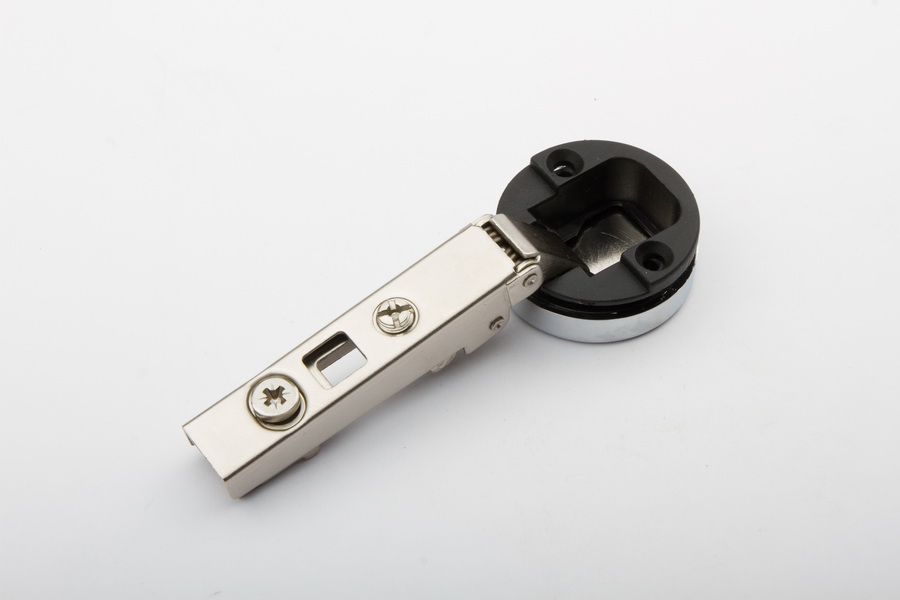

GB Series 105° Two-way Regular Concealed Hinge for Glass Doors (Cam Adjustable)
GB Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 105°
Function Auto Close
Plate type Clip On
Cup depth 12.5 mm
Cup diameter 35 mm
Drilling distance 3 mm - 6 mm
Door thickness 4 mm - 6 mm
Material Cold Rolled Steel
Height adj range Plate Adjustment
Overlay adj range 6 mm
Depth adj range 9 mm
Finish Copper Nickel
Packaging 200 Units per Carton
Notable features
- Two-way hinge technology extending the service life of the hinge.
