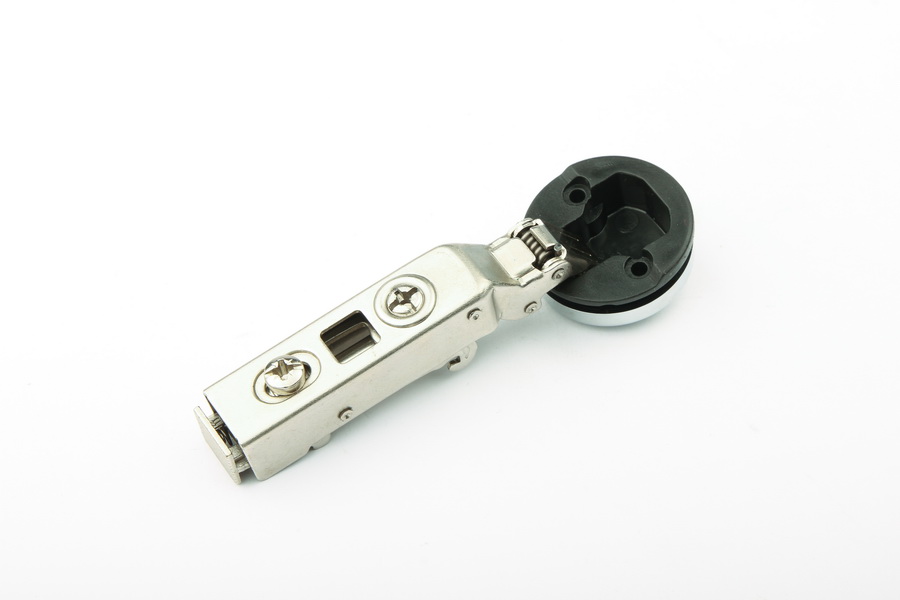

ML Series 95° Mini Soft Closing Concealed Hinge for Glass Doors
ML Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 95°
Function Soft Close
Plate type Clip On
Cup depth 12.5 mm
Cup diameter 26 mm
Drilling distance 3 mm - 5 mm
Door thickness 4 mm - 6 mm
Material Cold Rolled Steel
Height adj range Plate Adjustment
Overlay adj range 6 mm
Depth adj range 5 mm
Finish Copper Nickel
Packaging 200 Units per Carton
Notable features
- Compact design.
