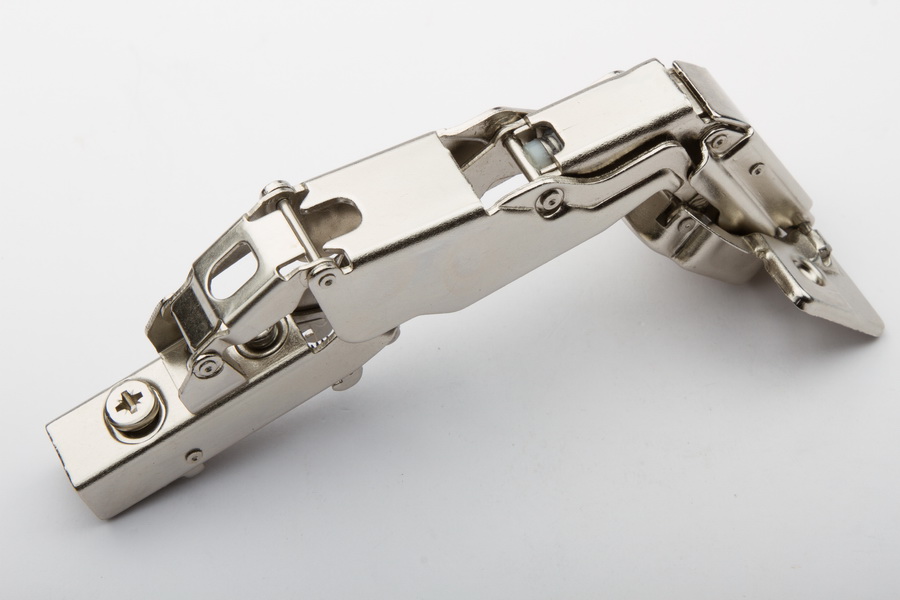

CM Series 165° Soft Closing Concealed Hinge (Cam Adjustable)
CM Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 165°
Function Soft Close
Plate type Clip On
Cup depth 11.5 mm
Cup diameter 35 mm
Drilling distance 3 mm - 7 mm
Door thickness 14 mm - 26 mm
Material Cold Rolled Steel
Height adj range Plate Adjustment
Overlay adj range 6 mm
Depth adj range 9 mm
Finish Copper Nickel
Packaging 100 Units per Carton
Notable features
- Wide opening angle to take optimal advantage of available storage space. - Soft closing function activates at very small angles. - Heavy duty product.
