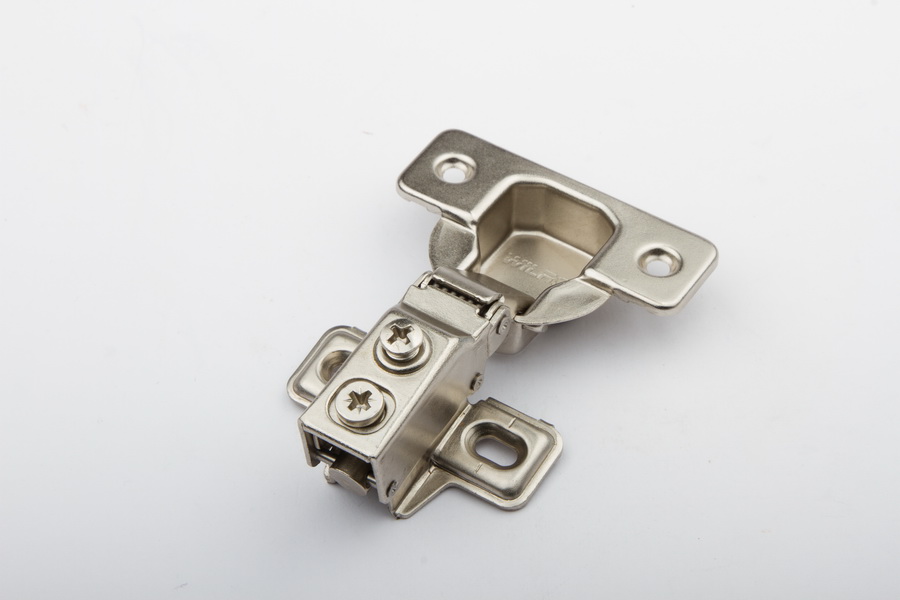

HM Series 100° Short Arm Soft Closing Concealed Hinge for Face Frame Cabinets 1/2"
HM Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 100°
Function Soft Close
Plate type Fixed Plate
Cup depth 11.5 mm
Cup diameter 35 mm
Drilling distance 3 mm
Door thickness 14 mm - 22 mm
Material Cold Rolled Steel
Height adj range 4 mm
Overlay adj range 3.8 mm
Depth adj range 3 mm
Finish Copper Nickel
Packaging 200 Units per Carton
Notable features
- Short arm design for improved esthetics on face frame cabinets.
