Concealed Hinges

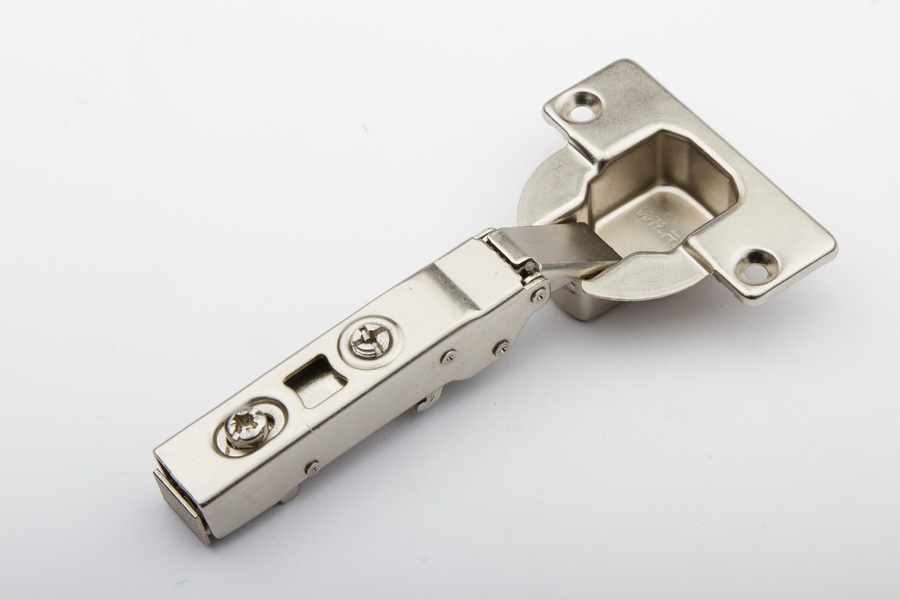

LD Series 95° One-way Soft Close Concealed Hinge for Thick Doors
LD Series
Download Tech Sheet
Specification
Opening angle
95°
Function
Soft Close
Plate type
Clip On
Cup depth
13.5 mm
Cup diameter
40 mm
Drilling distance
3 mm - 11 mm
Door thickness
18 mm - 30 mm
Material
Cold Rolled Steel
Height adj range
Plate Adjustment
Overlay adj range
6 mm
Depth adj range
5 mm
Finish
Copper Nickel
Packaging
100 Units per Carton
Notable features
- Classic 40 mm cup design.
