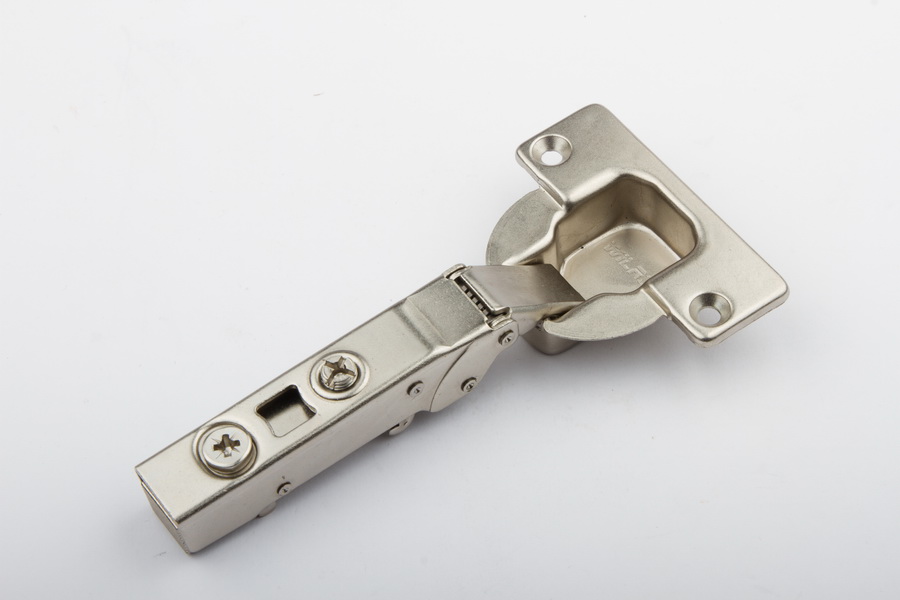

LL Series 95° Two-way Soft Close Concealed Hinge for Thick Doors (Cam Adjustable)
LL Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 95°
Function Soft Close
Plate type Clip On
Cup depth 13.5 mm
Cup diameter 40 mm
Drilling distance 3 mm - 11 mm
Door thickness 18 mm - 30 mm
Material Cold Rolled Steel
Height adj range Plate Adjustment
Overlay adj range 6 mm
Depth adj range 3.8 mm
Finish Copper Nickel
Packaging 100 Units per Carton
Notable features
- Classic 40 mm cup design. - Two-way hinge technology extending the service life of the hinge.
