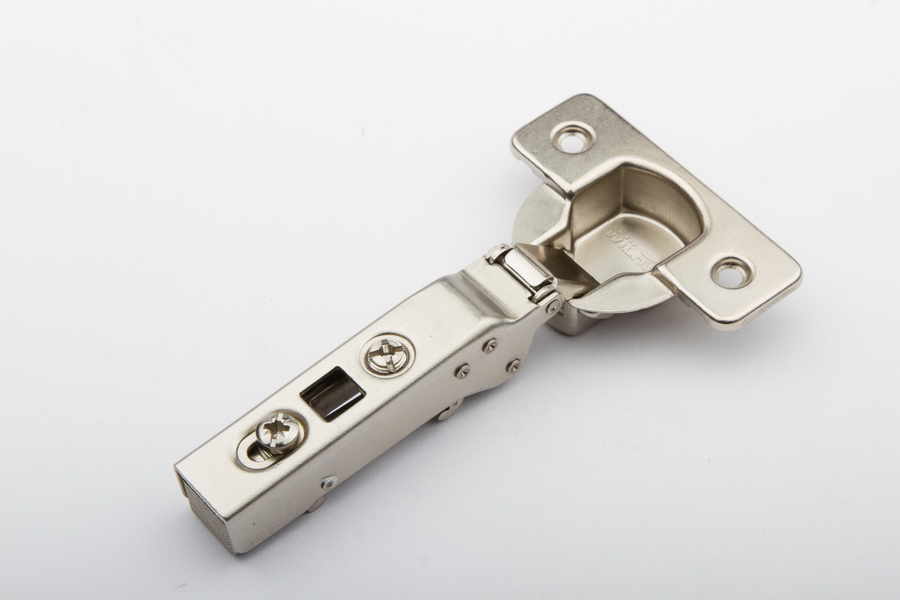

LV Series 95° Soft Closing Concealed Hinge for Thick Doors
LV Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 95°
Function Soft Close
Plate type Clip On
Cup depth 12 mm
Cup diameter 35 mm
Drilling distance 3 mm - 8 mm
Door thickness 15 mm - 28 mm
Material Cold Rolled Steel
Height adj range Plate Adjustment
Overlay adj range 6 mm
Depth adj range 5 mm
Finish Copper Nickel
Packaging 200 Units per Carton
Notable features
- Suitable for use on thick doors while using a 35 mm cup instead of conventional 40 mm. - Saves labor time and equipment costs by eliminating the need to switch between two sets of drilling tools.
