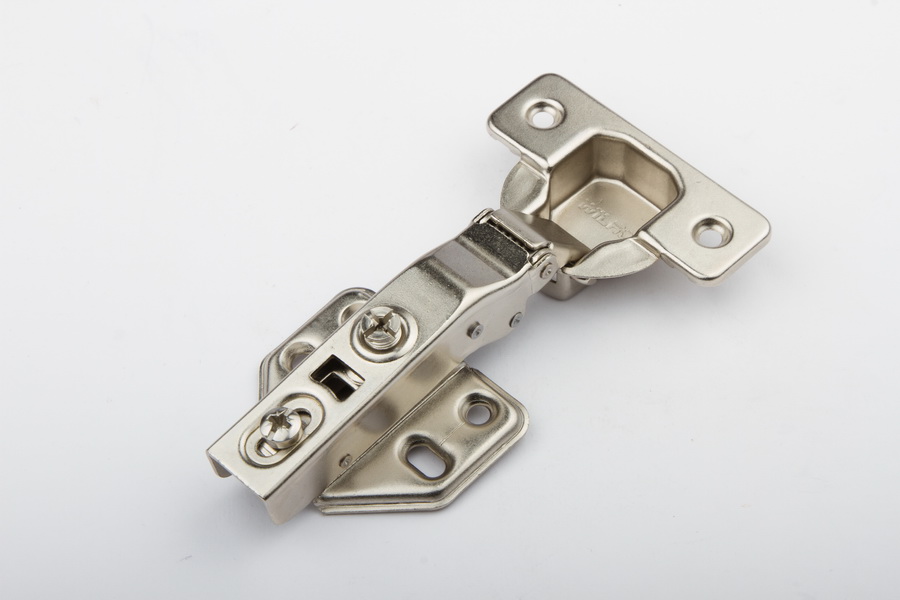

TG Series 105° Small Angle Soft Closing Concealed Hinge with Fixed Plate
TG Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 105°
Function Soft Close
Plate type Fixed Plate
Cup depth 11.5 mm
Cup diameter 35 mm
Drilling distance 3 mm - 7 mm
Door thickness 14 mm - 22 mm
Material Cold Rolled Steel
Height adj range 4 mm
Overlay adj range 8 mm
Depth adj range 8 mm
Finish Copper Nickel
Packaging 100 Units per Carton
Notable features
- Soft closing activates at very small angles. - Ideal for children furniture.
