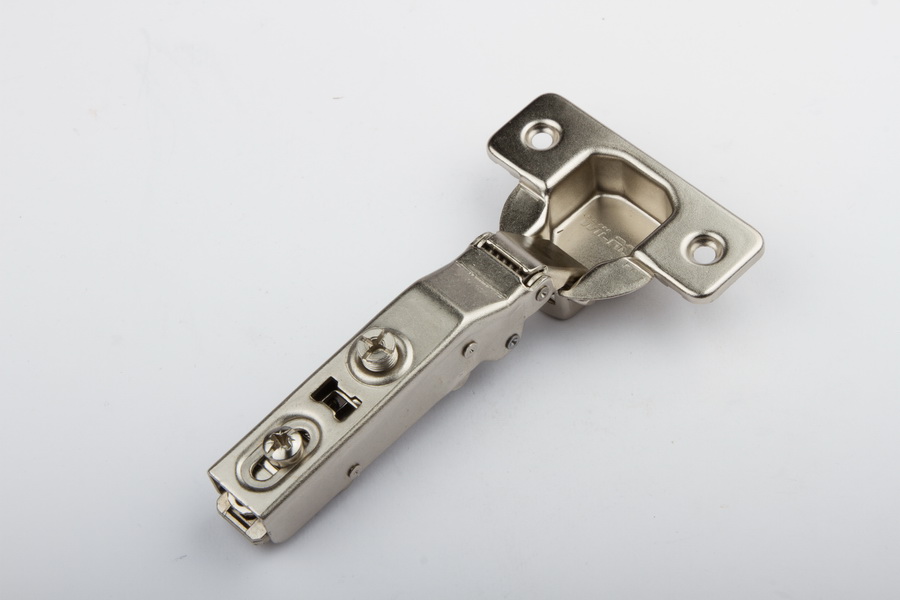

RL Series 105° Two-way Soft Closing Concealed Hinge
RL Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 105°
Function Soft Close
Plate type Clip On
Cup depth 11.5 mm
Cup diameter 35 mm
Drilling distance 3 mm - 7 mm
Door thickness 14 mm - 22 mm
Material Cold Rolled Steel
Height adj range Plate Adjustment
Overlay adj range 6 mm
Depth adj range 9 mm
Finish Copper Nickel
Packaging 200 Units per Carton
Notable features
- Large range of adjustment. - High tolerance for inaccuracies in cabinet manufacture. - Two-way hinge technology extending the service life of the hinge.
