Concealed Hinges

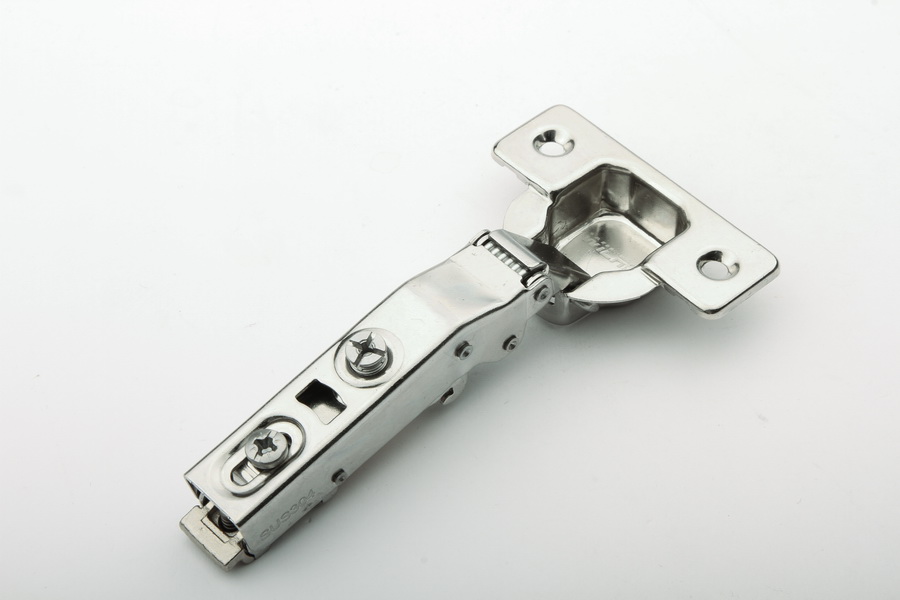

SK Series 105° Stainless Steel Soft Closing Concealed Hinge
SK Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 105°
Function Soft Close
Plate type Clip On
Cup depth 11.5 mm
Cup diameter 35 mm
Drilling distance 3 mm - 7 mm
Door thickness 14 mm - 22 mm
Material Stainless Steel 304
Height adj range Plate Adjustment
Overlay adj range 8 mm
Depth adj range 9 mm
Finish Stainless Steel
Packaging 200 Units per Carton
Notable features
- Stainless steel 304 body with brass damper for very high corrosion resistance. - Large Range of Adjustment. - Ideal for installation in kitchens, bathrooms, beach houses and buildings in humid climates. - 10 year warranty on function and rust resistance.
